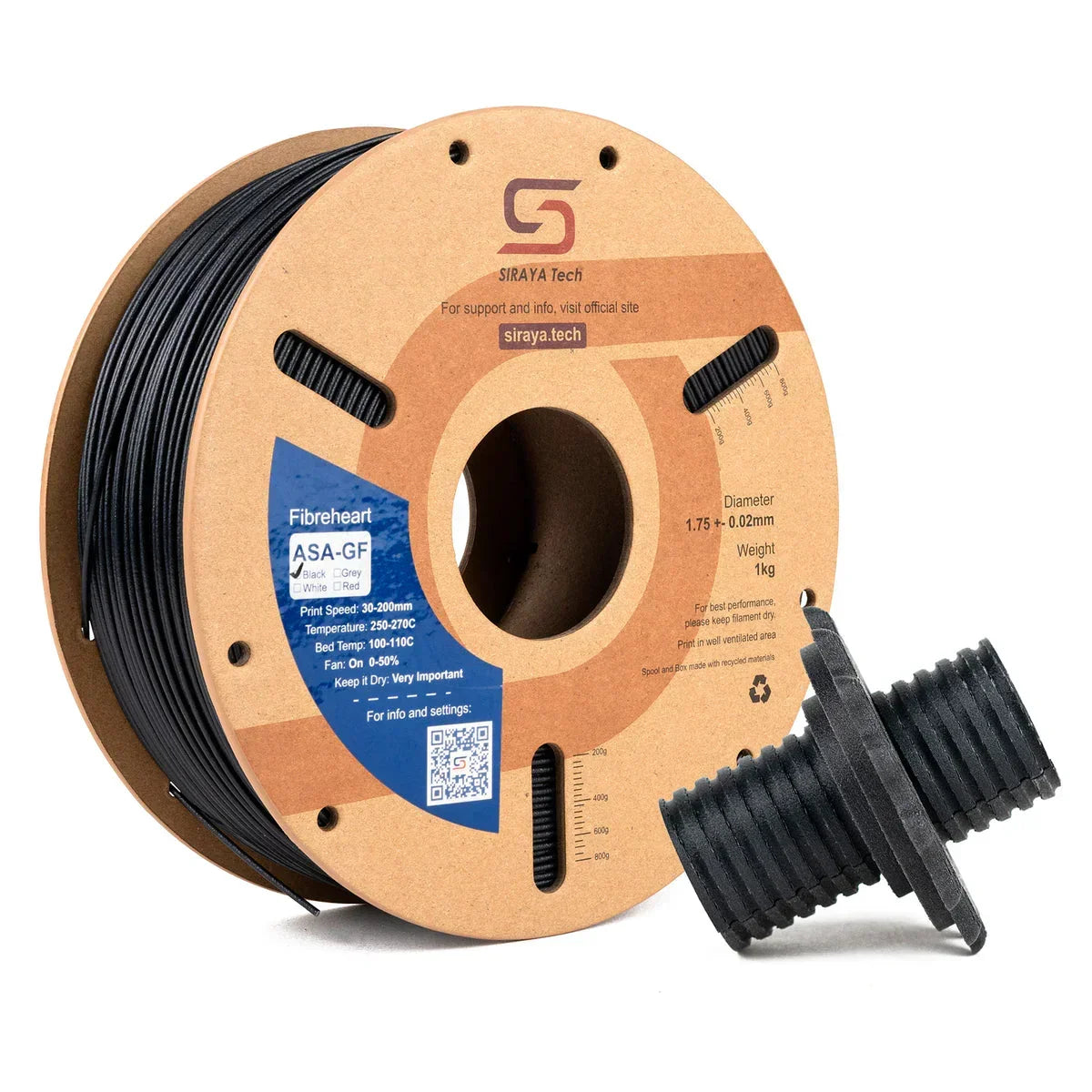

Siraya Tech - ASA - GF 1.75mm 1 kg

The Siraya Tech ASA-GF filament is the ideal choice for those who want to create components designed to last over time, even outdoors and in extreme environmental conditions. Made of ASA (Acrylonitrile Styrene Acrylate) reinforced with 10% glass fiber, this material offers exceptional resistance to weathering, UV rays, deformation, and impacts, superior even to ABS-GF.

Perfect for professional and technical applications, ASA-GF perfectly maintains its color and mechanical properties thanks to a formulation designed for outdoor exposure: garden furniture, signage, car components, industrial parts, and advanced prototypes are its ideal fields of use. The glass fiber gives the material high rigidity, very low printing deformation (anti-warping), and a smooth surface that can be easily worked or painted in post-processing.

Its heat resistance, with a glass transition of 106°C and an HDT over 90°C, also makes it perfect for parts exposed to heat sources or friction. Excellent dimensional stability even on large prints.

Technical specifications

• Filament diameter: 1.75mm (1kg spool)
• Composition: ASA + 10% chopped glass fiber
• Recommended print temperature: 250–270°C
• Heated bed temperature: 100–110°C (glass, PEI, or PC film)
• Heated enclosure: recommended 60–80°C for large objects or to avoid warping
• Recommended nozzle: hardened steel ≥0.4mm
• Tensile strength (XY): 45–47.5MPa
• Elastic modulus (Young's): 2,993MPa
• Flexural modulus: 2,810MPa
• Flexural strength: 81MPa
• Elongation at break: 3.1%
• Charpy impact strength: 8kJ/m²
• Shore hardness: 81D
• Density: 1.10g/cm³
• Glass transition temperature: 106°C
• HDT (Heat Deflection Temperature): 92–98°C (1.8–0.45MPa)
• Vicat: 105°C
• Melting point: 225°C
• Storage: dry environment, preferably using a dry box and drying the filament at 70–80°C for 4–6h in case of humidity
• Compatibility: all FDM printers with all-metal hotend and hardened nozzle

Usage tips

• For best results, use a printer with a closed and heated chamber, a well-leveled bed, and glue/adhesive.
• Before printing, dry the filament if necessary.
• For clean supports, opt for specific removable support materials for ASA.
