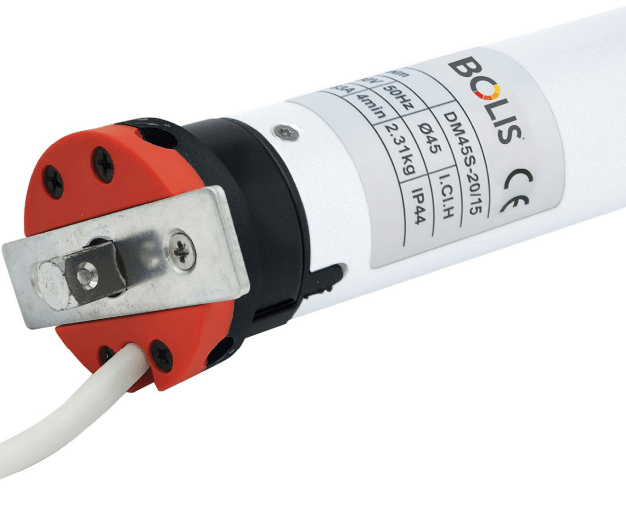

Mechanical motor without emergency override, for roller shutters, Torque 50 NM, 15 rpm.

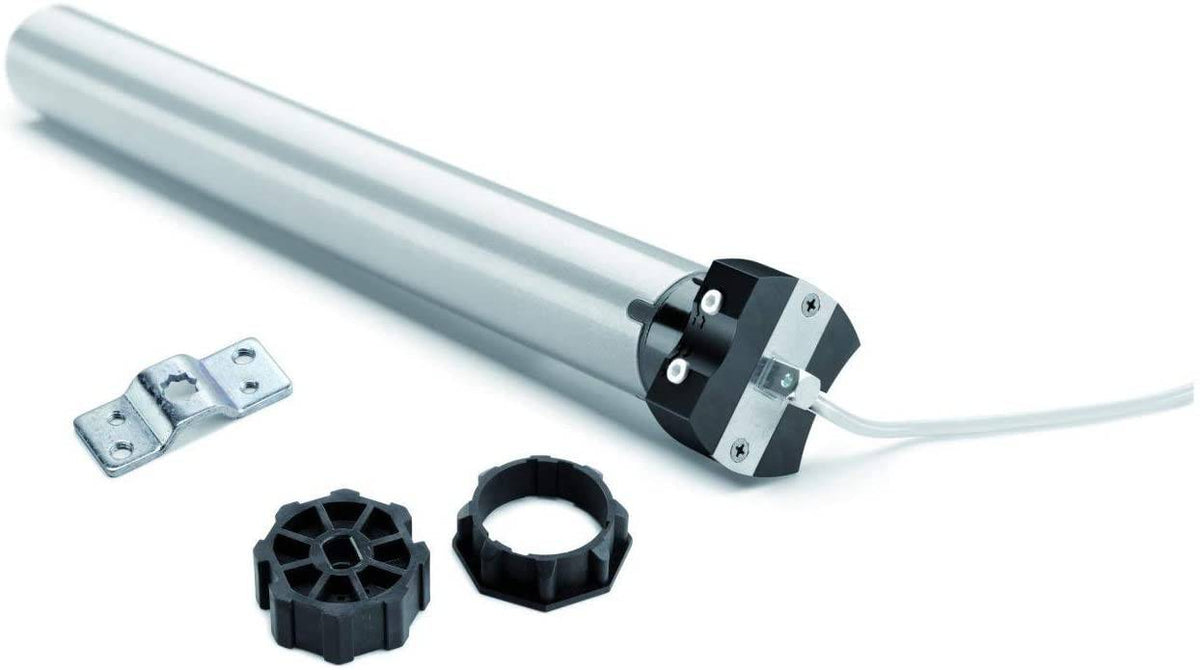

Package contents: crown and adapter for 60 mm diameter roller shutter tube, star support, cotter pin and stops, setting tool for limit switches.
Durable and easy to install, it allows you to effortlessly lift roller shutters weighing up to 100 kg.
FEATURES SUMMARY:
- Mechanical motor without emergency override
- Compatible with 60 mm diameter roller shutter tube
- Easy limit switch setting
- Mechanical limit switch
- The motor can lift up to 100kg
- Power supply 230 V
- Frequency 50 Hz
- Power consumption 154 W
- Current consumption 0.64 A
- Time before thermal cut-out 4 min.
- Protection rating IP 44
- Complies with CE directives
