Print Technology: Fused Filament Fabrication (FFF) enhanced with Mosaic’s patented Series Enabled Multi-material Extrusion (SEME)
Build Area: 1.6m x 3.2m x 2.1m (5'2" x 11'2", 5'2")
Construction: Durable All-Metal Motion Systems, Aluminum External Frame, 3 crates on wood pallets, all less than 33 inches wide. 2 crates contain Array, and the third crate contains 4 Element printers.
Power Input: 230VAC, 30A
Layer Resolution: 20-320 microns
XYZ Resolution: 12.5µm, 12.5µm, 0.4µm (X, Y, Z)
Max Speed (Travel): 300mm/second
User Interface: 5” Color Touch Screen or Remote Access from Canvas
Monitoring: Live camera feed inside chamber
Status Indication: RGB Column Lamp
Nozzle: 0.4mm Hardened Steel Nozzle
Compatible Models: 0.4 Print Head, 0.4 HT Print Head
Maintainability: Modular Extruder, Tool-free removal in < 60 seconds
Build Speed:< 100mm/s, 200mm/s max print head travel speed
Build Plate: Spring steel build plate, automatically swapped via internal robotic arm
Heated Bed: 0 to 120°C
Heated Chamber: 0 to 80°C
Max Nozzle Temperature: 300 - 500°C
External Fume Extraction: Integrated exhaust fan with optional 3” external fume extraction attachment (not included)
Software Provided: Canvas / Canvas Team
Connectivity / File Transfer:Wi-Fi, LAN (Ethernet)
Material Type: Mosaic Certified, Non-Mosaic, Other Unsupported Materials
Material Bays: 8 x 1500cc material bays per printer (12,000cc/printer total) 32 x 1500cc material bays in series (48,000cc/series total)
FREQUENTLY ASKED QUESTIONS

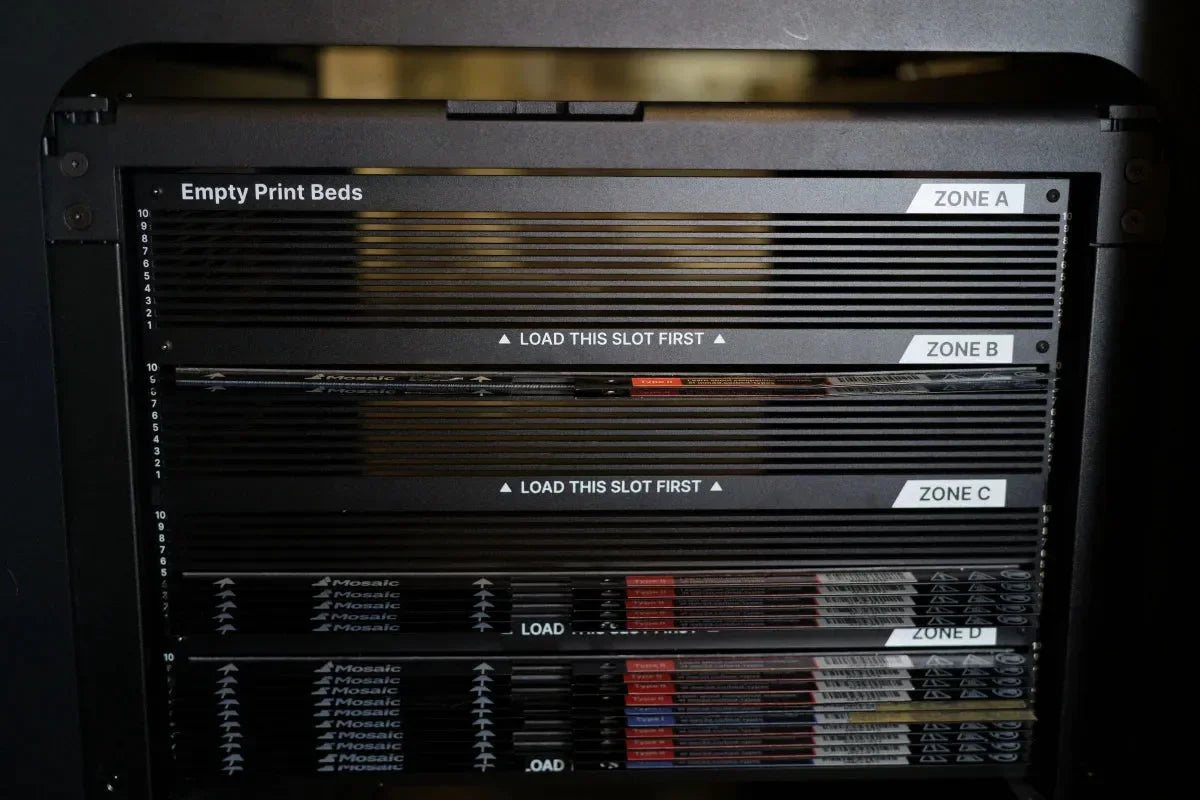

Array can complete 40 print plates in a row before reloading is required. For many users, this is at least 72 hours of continuous 'lights out printing,' though this depends on the prints being run and the density on the print plate.
The printers know each print's height and track this within the software. Space is allocated based on this information, and a buffer space is added to ensure no collisions occur.
Each Array requires a Canvas Array account to operate, and Canvas is currently cloud-based.
Yes, the Array-based model (Array 8) comes with 4 Element printers, each with 2 material pods and a low-temp print head. Material pods and high-temp printing capabilities can be added to all printers based on your use case requirements.
Each Element has an integrated HEPA filter that can be easily replaced (every 6-12 months, based on use). Array also has a 3" hookup on top for an external fume extraction or filtration system.
Array is 1.6m x 3.2m x 2.1m. To account for door swing radii, we recommend a 3.8m x 1.6m footprint and with a minimum ceiling height of 2.1m.
Array is proudly designed and manufactured in Canada.
Array ships unassembled and will be assembled, built, and tested by Mosaic as part of your white glove installation service. Mosaic will also handle the training for your in-house staff.
Replacement parts will be available for purchase through Mosaic’s online store or through your Mosaic contact.
Array can be configured with either.
Yes, both Element and Array work with compatible third-party materials. Array will require a third-party NFC tag on any third-party spool to be registered by Array for use.
The warranty for Array is 12 months. If you purchase an extended warranty or an Array HT, the warranty is 24 months.
